CellPave 50 – Interlocking Ground Reinforcement System

Interlocking Cellular Paving Grid System

CellPave™ 50 cellular paving grids are the heavyweight solution for commercial parking areas and access tracks. Fully tested and certified by TUV for vehicles up to 60 tonnes.

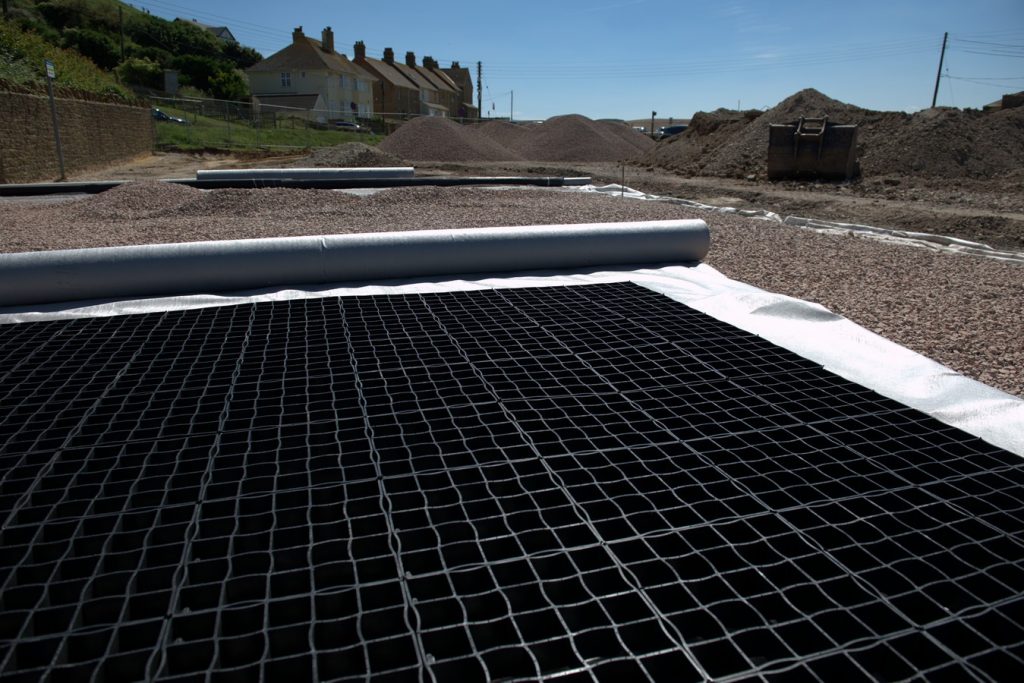

CellPave™ 50 is an interlocking cellular paving grid system that can be infilled with either a gravel or grassed finish. Manufactured from 100% recycled LDPE plastic, CellPave™ 50 permeable grass & gravel plastic pavers are supplied per sq/m. CellPave™ 50 grass pavers are a cost effective solution to worn & rutted grassed areas, displaced gravel and for source control of surface water run-off. CellPave™ 50 paving grids are designed to be installed onto a well prepared, free-draining and relatively even surface using either a ‘Reduced-Dig System’ or by employing a full sub-base construction incorporating a geogrid reinforcement layer.

HANDLING
You can cut CellPave™ 50 grids easily with a common angle grinder or jigsaw. The grass reinforcement paver grids have a very open cell structure allowing unrestricted healthy grass root growth and water infiltration and can be used as part of a sustainable urban drainage system (SuDS).

CellPave™ 50 pavers should be installed onto a firm level sub-base (typically a DoT Type 3 or porous sub-base). The thickness of this base is dependant on the existing ground conditions and the design load specifications.

Please note that with all installations of grass pavers, it is strongly recommended that all areas should have sufficient drainage prior to installation. Failure to ensure this may result in the product not performing as intended.

QUICK SPEC

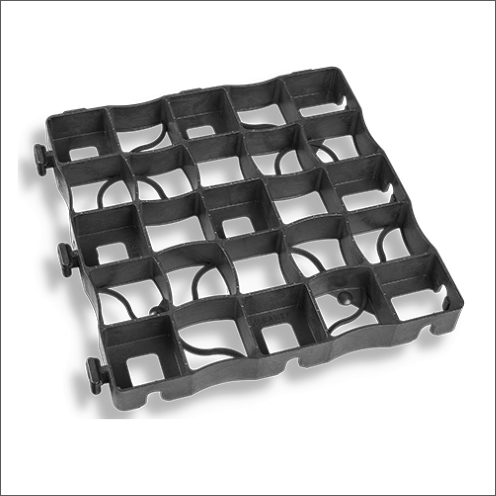

Grid Size: 330mm x 330mm x 50mm
Wall Thickness: 5mm
Weight per M²: 8.65kg
Pre-Assembled Layers on Pallet: 12 tiles per layer (1.3m²)
Layers on Pallet: 45
M² on Pallet: 58.8
Pallet Dimensions: 1350mm x 1020mm x 2345mm
Pallet Weight: 545kg

APPLICATIONS

• Commercial parking areas (inc coaches)
• Access Roads and Fire access routes
• Aircraft taxiways and helipads
• Pedestrian pathways
• Embankments and shoreline reinforcement
• Erosion Protection

CHARACTERISTICS

• One of the heaviest paving grids in it’s class
• Optimal surface load distribution
• High strength construction
• Extremely simple and quick to install
• Hooks together easily with foot pressure
• Pre-assembled at 1.3m² (12 grids/layer)
• Anti-slip nodules on top/bottom
• UV Resistant and weatherproof
• Long service life

 See HERE for sensible advice about Cellular Pavers

Purchase CellPave 50

ORDER UP TO 294m² ONLINE NOW











Need more than 294m² – Volume discounts are available

Get a Purchase Quotation

PRODUCT GALLERY
